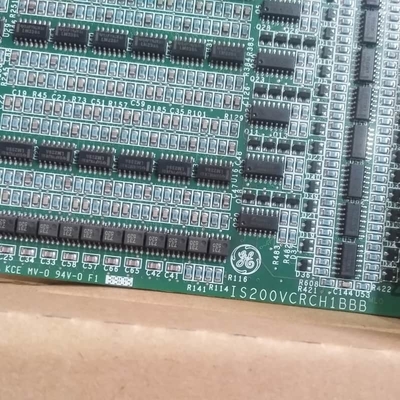

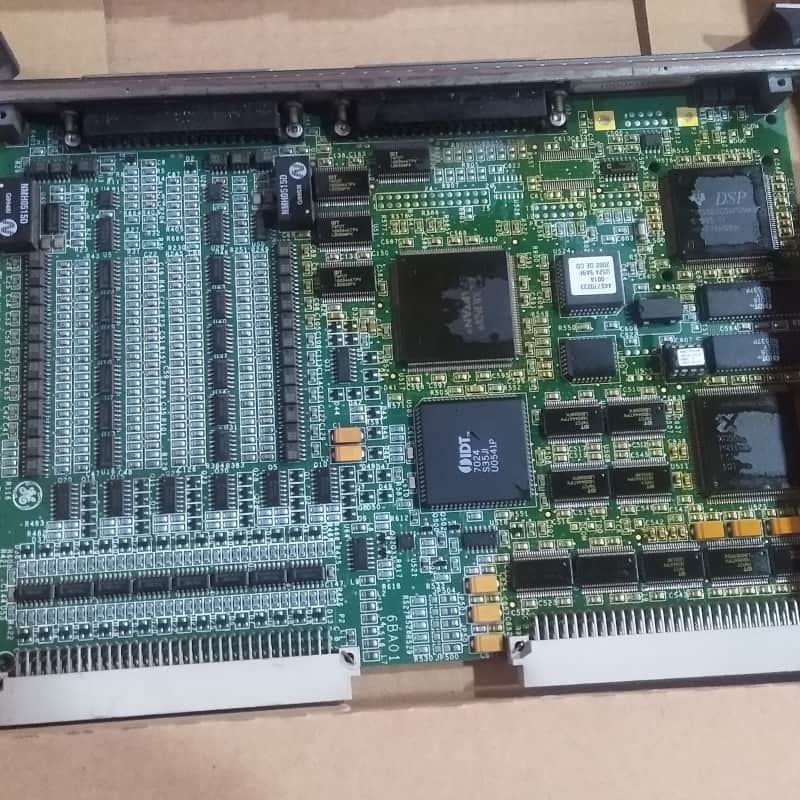

GE IS200VCRCH1BBB Discrete I/O Board for Mark VI Turbine Control
| Place of Origin | US |
|---|---|
| Фирменное наименование | GE |
| Model Number | IS200VCRCH1BBB |
| Minimum Order Quantity | 1pc |
| Цена | $3000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Свяжитесь я бесплатно образцы и талоны.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Скайп: sales10@aixton.com
Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.
xПодробная информация о продукте
| Name | GE IS200VCRCH1BBB Discrete Input / Output Board | Product ID | IS200VCRCH1BBB |
|---|---|---|---|
| Series | Mark VI | Function | Discrete Input/Output Board |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Выделить | GE Mark VI turbine control board,Discrete I/O board for turbines,GE IS200VCRCH1BBB control board |
||
Характер продукции
GE IS200VCRCH1BBB Discrete Input / Output Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200VCRCH1BBB Discrete Input / Output Board |
| Product ID | IS200VCRCH1BBB |
| Series | Mark VI |
| Function | Discrete Input/Output Board |
| Product Net Depth/Length | 330mm |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Weight | 2kg |
| Warranty | 1 year |
Product Description
The GE IS200VCRCH1BBB is a Discrete Input/Output Board in the Mark VI Speedtronic system, serving as a compact, single-slot alternative to the VCCC board.
- Manages up to 48 dry contact inputs via TBCI terminal boards (24 per board)
- 12 relay outputs through TRLYH1B boards with configurable relays for dry contacts or solenoid control
- Wired to the VME rack via molded plugs
- Supports 1 ms high-speed scanning for critical turbine variables
- 1 ms-resolution SOE recorder to track contact events
- Equipped with optical isolators and 4 ms noise filters for signal integrity
- Compatible with simplex and TMR systems
- Uses VME backplane communication for TMR voting, enhancing fault tolerance

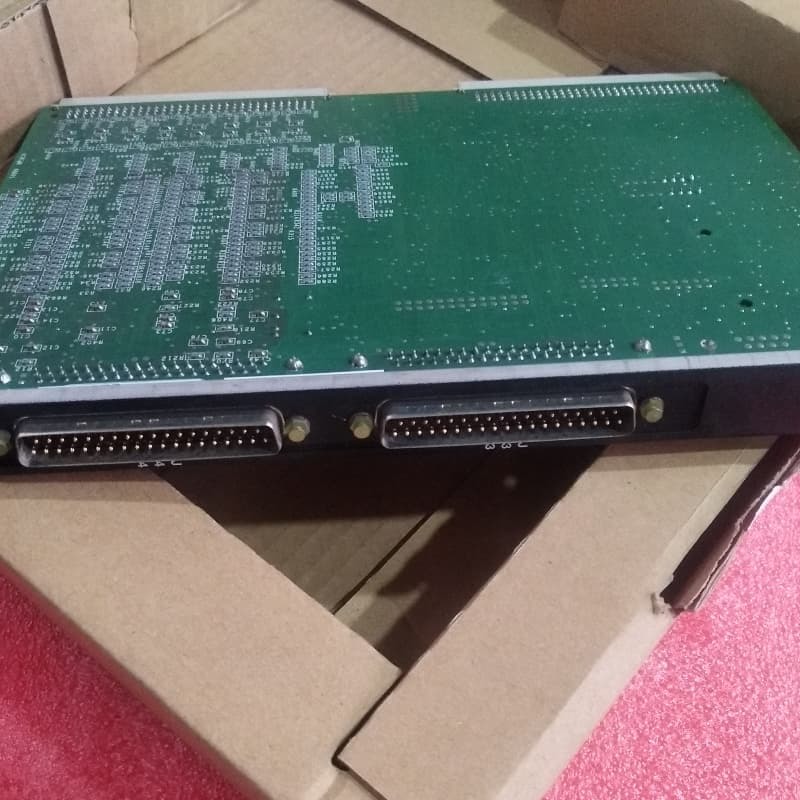

- Front-panel J33/J44 connectors and diagnostic LEDs (run/fail/status) for monitoring
- Failsafe relay de-energization on faults
